Practical Guide to Mass Finishing Jewelry

A microscopic and technical view of mass finishing presented in layman's terms. Understanding of mass finishing must start at the very basic level of what happens microscopically to the surface of various materials. All the variables will be discussed, such as the media, compounds and the effect of various types of machinery on the finishing process. Practical techniques and the associated costs will be presented for pre-finishing of precious metal jewelry as well as costume or imitation jewelry.

INTRODUCTION

This article is an explanation of Mass Finishing from a practical standpoint. The views discussed here are a result of 30 years of experience in manufacturing jewelry, job shop processing for many diverse manufacturing industries as well as experience in designing and manufacturing of finishing equipment. Historically, the mass finishing department of many companies have not received the attention or understanding required to serve the best interests of the manufacturer's finished product. Typically, manufacturers migrate to opposite ends of the spectrum with regards to their finishing department. It is either in the remotest location of their facility and the attitude is "well that's the way we have always done it" or they have instituted a sophisticated system without the proper understanding of the economics or the reality of everyday jewelry manufacturing. There is no best way of finishing a product. Before any changes are made to a finishing department, the manufacturer must address the importance of several aspects before making a decision. Most Important Semi Important Least Important Processing Time Quality of Finish Cost of Finishing Training Employees Maintenance Cost of Equipment Loss of Material from Product

III MEDIA - COMPOUNDS

A. DEFINITION

The word media is used to describe the material that is used in mass finishing to actually do the work on the surface of the part that is being finished. The compound refers to the different types of chemicals used during wet mass finishing operations.

B. FUNCTION OF MEDIA

The functions of media are varied and range from rough cutting to polishing. ROUGH CUTTING of the raw product is to remove all possible surface imperfections. Depending upon the manufacturing process, some hand work may be necessary prior to this mass finishing step. Raw gold casting must have the sprue cut off and ground down to the surface. In the case of a white metal rubber molded piece, usually no hand operation is necessary. However, each case depends on the manufacturing process. The rough cut is to remove the surface imperfections of the material due to its fabrication technique. (i.e. casting, rolling, forming, etc.) This is the stage where mass finishing plays its biggest role in labor savings. Typically, mass finishing can save 50 - 75% of the hand labor used to finish a piece of jewelry.

The rough cut is almost always done as a wet operation with media, water and compound. The labor savings is most obvious for cast materials due to the inherent roughness of the "as cast" surface. PRE-FINISHING is the term used for the operation following the rough cut stage. The pre-finishing step is usually done prior to machine polishing, hand polishing or electroplating. The purpose is to increase the smoothness of the "rough cut" surface so as to make the polishing or electroplating procedure more effective. In order for a product to be machine polished or a combination of machine and hand polished, this step is most necessary. If the product is going to be hand polished or electroplated, this step may or may not be necessary. This would depend upon whether the labor saving is worth the time investment. A question quality versus cost must also be taken into consideration. The pre-finishing operation is almost always done as a wet operation with media, water and a compound. MACHINE POLISHING is very economical where applicable. It can save up to 95% of hand finishing labor costs; however, many facto must be considered for this step to be viable. This is usually a dry procedure using a natural carrier and a powdered compound without water. Fig. 4 BURNISHING is used to render the surface of a product bright by J means of rolling over a surface with a non-abrasive media such as steel or porcelain. This method physically peens the surface in order to increase light reflectivity which, in turn, will make the surface appear bright. This media is the heaviest available and is used with water and compound.

C. MEDIA TYPES

There are a variety of different media for different applications:

Normally, there are two components of CUTTING MEDIA:

1. abrasive grains and
2. carrier or bonding agents

Abrasive grains for cutting media can be any of the following:

1. Silicone carbide - most aggressive
2. Aluminum oxide - moderately aggressive
3. Silica- least aggressive

Bonding materials can be:

1. Ceramic - hard
2. Plastic - soft
3. Natural - range soft to hard

PRE-POLISHING MEDIA is much the same as cutting media with exception of the size of the grain that is bound into the media. Pre-finishing media is also used to perform a cutting operation; however, much more gentle and finer than the rough cut media.

BURNISHING MEDIA has no abrasive grain. This media is used simply to roll over or hammer away at the surface with the sole purpose of making it bright. This media is typically made from either very heavy lain or solid steel.

POLISHING MEDIA is generally made of a natural base material as wood, shell or corn cob. Polishing compounds, very similar to used in hand polishing bars, are bound to the natural base by means wax or oil based product.

D. MEDIA SIZES AND SHAPES.

The various types of media are available in many shapes and sizes. When choosing sizes and shapes, one must consider the geometry of the being processed and choose the largest media possible that will fulfill the following criteria:

1. The shape chosen will best be able to touch every part of the surface of the work pieces.
2. The size will facilitate easy separation (i.e. either the media or the piece can be sifted through an existing separating screen).

E. FINISHING COMPOUNDS

Finishing compounds are either liquid or powder and are as additives to the water being used during any of the mass finishing operations There are three purposes for compounds (1) The compound is form of soap used to suspend the solids being removed from the surface the product (much like dishwashing soap). (2) The prevention of oxidation or discoloration of the metals being processed. (3) The addition lubricity to the process. The proper compounds form a cushion between the media and the work piece, which allows a sliding action which in turn, reduces impingement of the abrasive. Compounds are used both types of processing. The first is called a batch operation where a prescribed amount of media, water and compound are placed in a sealed process chamber. The second is called a flow-thru operation where a prescribed amount of water and compound continuously flow in and out of open processing chamber of media. Theoretically, compounds are most likely to be changed for a particular metal being processed as well as for a particular step (i.e. rough cut, pre-finish etc.) In reality; however, this is less likely to be specifically matched to the purpose. Most manufacturers settle on one "all purpose compound" best suited for their needs.

PYRAMIDS SPEC A B C P0 3/8 5/8 5/8 P1 1-5/8 1 1 P2 2 1-1/2 1		CONE SPEC A B C1 3/8 3/8 C2 1/2 9/16 C3 3/4 3/4 C4 1 1-1/4 C5 1-1/4 1-1/4 C6 1-1/4 1-1/2 C7 1-1/2 1-1/2 C8 1-3/4 1-3/4 C9 2 2 C10 2 2-1/2 C11 2-1/2 2-1/2		TRI-STARS SPEC A B TS1 1-3/8 1/2 TS2 1-3/4 3/4 TS3 2 3/4
TETRAHEDRON SPEC A B C TH1 3/4 3/4 3/4 TH2 1-1/8 1-1/8 1-1/8 TH3 1-1/4 1-1/4 1-1/4 TH4 1-3/8 1-3/8 1-3/8		ANGLE CUT TRIANGLE SPEC A B ATR1 1 1-1/8		WEDGES SPEC A B C W1 1-5/8 1 1 W2 2 1-1/4 1-1/8
TRIANGLE SPEC A B C TR0 1/4 1/4 1/4 TR1 5/8 1/2 3/8 TR2 11/16 7/16 5/8 TR3 1 5/8 9/16 TR4 1-1/4 5/8 5/8 TR5 1-3/4 1-1/4 1-1/4 TR6 2-1/2 2-1/2 2-1/2		CYLINDER WEDGE SPEC A B ATR1 1-1/4 1-1/4 ATR2 1-1/2 1-1/2		ANGLE CUT CYLINDERS SPEC A B C AC1 1 9/16
TRIANGLE SPEC A B C TR0 1/4 1/4 1/4 TR1 5/8 1/2 3/8 TR2 11/16 7/16 5/8 TR3 1 5/8 9/16 TR4 1-1/4 5/8 5/8 TR5 1-3/4 1-1/4 1-1/4 TR6 2-1/2 2-1/2 2-1/2

F. HOW MEDIA AND COMPOUNDS WORK

Mass finishing media works basically in the same manner as the materials used in hand finishing. FIG 10 a-d

The main difference is that a machine is used to apply the force through the tool to the work piece. The other difference is that a mass of pieces are being processed rather than one piece at a time. Hence, the name Mass Finishing.

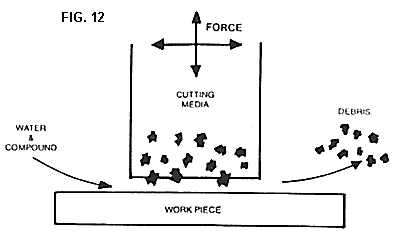

In order to perform the CUTTING OPERATION, we must choose the best combination of abrasive grain, bonding material, size, shape and the proper compound to use during the process. The cutting media works in the same manner as a grinding wheel. A force is required to rub the media across the surface of the work piece.

At the point of contact of media and the work piece, abrasive grains are exposed at the surface of the media and rubbed across the work piece, microscopically cutting material from its surface. As material is being cut away from the work piece, the abrasive grains are becoming dull as they do their job.

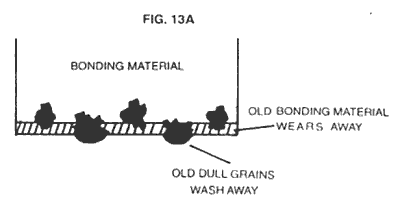

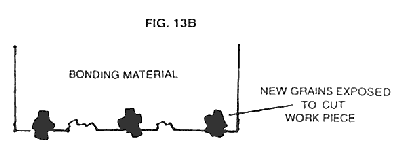

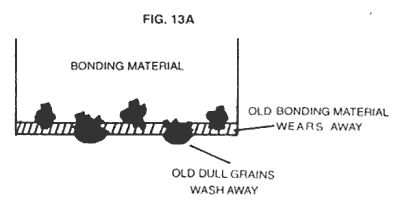

Meanwhile, the bonding material is wearing away so as to rid the media of these dull abrasive grains and to expose new sharp grains to continue the cutting process. The water and compound are used to cushion this effect as well as to remove all of the waste (used abrasive grains, bonding material, work piece surface material) from the operation. Economics now come into play when choosing the proper cutting media.

The faster a media cuts, the faster it normally wears which equates to dollars per finishing operation. If the bonding agent of the media does not wear fast enough, the abrasive grains may not perform as effective as they should. There is an optimal wear ratio between the bond and the grain. If this ratio is not correct, the media is less cost effective. Regardless of these microscopic costs, the overall economic scale of labor saving, material loss and overall time savings make mass finishing a sure bet.

PRE-POLISHING OPERATION

The pre-polishing operation is practically the same as the cutting media except the bonding material is usually harder and the abrasive grain size is smaller. In some cases, the abrasive grain is in the form of slender finer shape. By rubbing over the surface with a greater low of water and a compound that lubricates more effectively, a gentle honing action occurs. The purpose is to reduce the surface to a finer/smoother finish. Typically, the wear of pre-polishing media is much less than that of cutting media. We are less interested in removing metal, than we are in reducing the surface finish.

POLISHING OPERATION

The polishing operation is normally done as a dry process, the media in this case is either of several natural products like wood round up corn cob or nut shells. In this case, there is no water flow and, the compound is dry and bonded to the carrier. Some typical compounds are alumina and tin oxide, which are the same compounds used for hand polishing In this case, the rubbing action of the media is meant to -plicate the action of a polishing wheel rubbing polishing compound over the surface of the work piece. As long as the surface has previously been rendered smooth and flat, this process will now produce a high luster to the surface. This operation usually takes a much longer time than the rough cut and pre-polish. The finish that is achieved with this method is very good; however, it will never be equal to that of a hand polished finish No mass finishing machine has been able to duplicate the force and action necessary to compare to hand polishing. Hand polishing actually over the surface of the work piece by dragging metal whereas machine polishing only glosses the existing surface. During this operation, due tog the fact that it is a dry process, heat is generated by the friction of the in moving This heat is beneficial to the process because it helps activate it polishing compound itself; therefore, it is helpful to retain as much of the .at generated by covering the process. Unlike cutting and pre-polishing' media, the polishing media has a life span, after which it is no longer effective This is due to the fact that the polishing compound is only bonded to the surface of the media as opposed to the abrasive grain being 81 bound throughout the whole composition. However, once this media has been expended, it can be re-charged for several more cycles before being discarded.

BURNISHING MEDIA

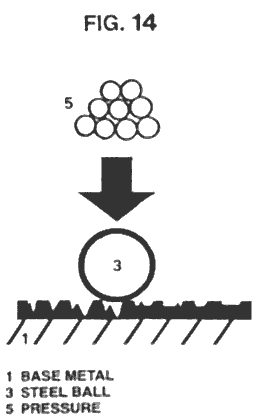

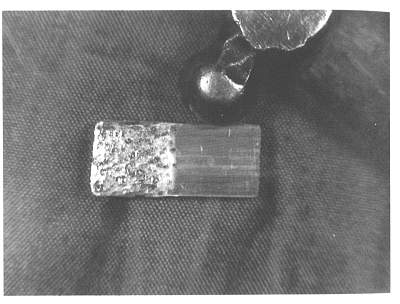

Burnishing Media is typified by the lack of abrasives and a hard and extremely smooth surface. The purpose of burnishing is to brighten the surface of a material by means of peening the surface. The correlation that we use to explain this is if one took a plain dull piece of brass and a ball peen hammer. After repeatedly hammering the surface, it will then take on brightness imparted by the surface of the ball peen will hammer.

Steel or stainless shot as well as porcelain balls are the typical media of choice for burnishing. These are usually the heaviest materials available and they are processed to have a microscopically smooth and shiny surface finish

IV MACHINES

The media is what actually performs the surface finishing. The compound allows this work to be done efficiently but it is the machine that provides the energy to do all the work. There are several different types of mass finishing machines, all of which have a different method of transferring energy from an electric motor to the media to the work piece.

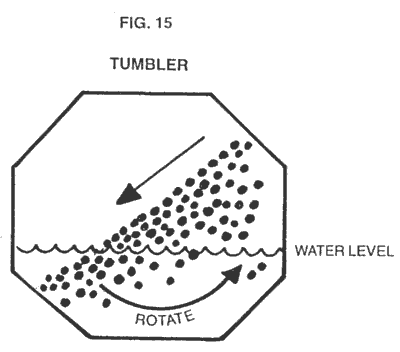

Tumbling Machine

The Tumbling Machine is the oldest form of mass finishing equipment. A motor is attached to the gear box by means of a pulley and belt. The gear box rotates an octagonal finishing chamber which is either submerged in water or contains water in its chamber. The chamber should be loaded with between 50% and 60% of the total chamber volume. About 15% to 25% of the total mass should be work pieces In this equipment, the pieces are only being worked on as the media and pieces tumble down the incline of the rotating barrel. Meanwhile, as the mass rotates up to the top of the incline, there is no movement of media with respect to workpiece; therefore, no work is (D 83 being done. This type of operation is still effective for limited applications with longer time cycles and a low quality finish.

Efficiencies of Tumblers

Good for low cost, low quality finishes Good for cutting & de-burring flat stackable work pieces Good for low cost, low quality burnishing Deficiencies of Tumblers: Labor intense for volume processing Not effective for polishing Not effective to pre-polishing Flow-through compound system not available More apt to get part on part impingement Will not finish parts with deep recesses.

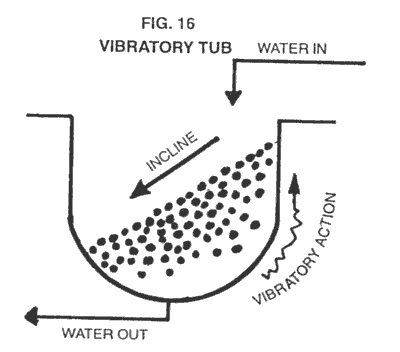

Vibratory Tub Machine

THE Vibratory Tub Machinewas the next generation of mass finishing equipment. It took the same basic idea of the tumbling machine but created a new and more efficient means of transferring energy from the motor to the tub. The chamber is "U" shaped and suspended on springs. The shaft with eccentric weights is attached to the chamber and is rotated by means of a belt and pulley attached to the motor. There are still some of the same inherent problems in this process as in tumbling but now we have incorporated a flow-through compound system and vibratory action for more efficiency.

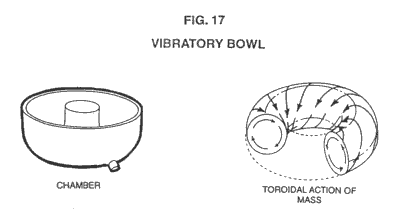

Vibratory Bowl

The Vibratory Bowl machine was the next generation of mass finishing and remains the most popular and most effective to date. The processing chamber is the shape of a hollowed doughnut laying on its side. A motor is attached to a shaft with eccentric weights which is fixed to the bowl shaped chamber which is suspended on springs. The ensuing action causes the mass to travel in a three dimensional toroidal motion.

This type of action allows for the most efficient processing of work pieces. The work chamber can almost be filled to capacity as well as allowing the high concentration of work pieces in relationship to the mass.

Efficiencies of Vibratory Bowl:

• Highest quality finish
• Low maintenance
• Allows flow-through operation
• Low labor cost for operating
• Minimizes processing load

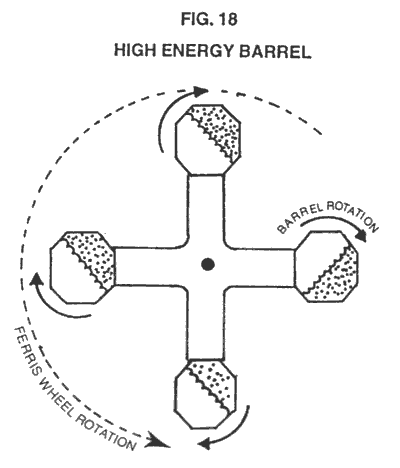

High Energy Barrel Machines

High Energy Barrel Machines operate basically the same as tumbling barrels with one major difference - centrifugal energy is added to the process to dramatically reduce the processing time. This is accomplished by mounting several barrels in a ferris wheel type arrangement and spinning the complete apparatus as each barrel is rotating.

Except for the extra force applied to the media and work piece, all the draw-backs of tumbling are still inherent. An additional drawback is that the equipment now becomes very expensive as well. Processing time is one positive feature of the apparatus.

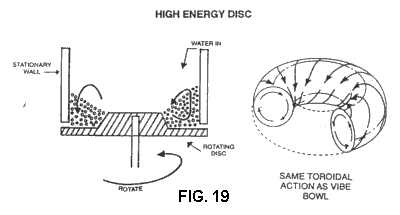

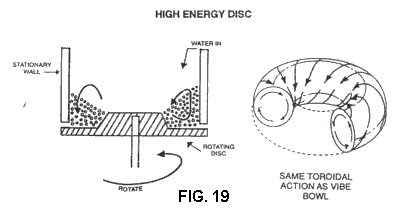

High Energy Disc

The High Energy Disc finishing machines have been developed to take advantage of the three dimensional action of a vibratory bowl and the reduced processing time of centrifugal force machines. The energy is transferred from a motor to a gear box in order to rotate a central disc at the bottom of a round stationary chamber. Centrifugal force and the rotating action sends the mass outward towards the stationary wall. The mass then slows down and returns to the center to complete the cycle.

This method incorporates the ability to have flow-through processing and high energy. The major drawback to this equipment lies in the disc seal. This is the machine part that lies between the stationary bowl and rotating center. A precision opening must be maintained so as to allow the flow-through water and debris to escape. The inherent problem is that abrasives are constantly flowing through a moving seal. This makes for a maintenance nightmare besides the high initial expense of the equipment. Process time reduction is the benefit derived from this equipment. The latest development in mass finishing equipment is a machine designed for the specific purpose of burnishing.

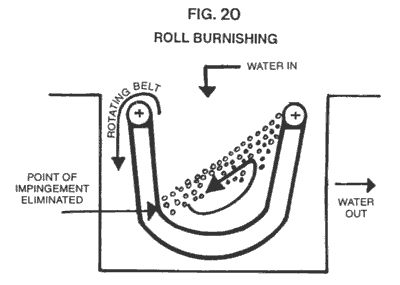

Roll Burnishing Machine

The Roll Burnishing Machine is a completely new drive mechanism for the oldest of techniques, burnishing.

This new machine is a form of high energy ball burnishing. It operates by rotating a belt in a tub shape configuration while submerged in a rectangular tub of water and compound. Not only does this facilitate a much faster cycle, there is also the point of impingement on all tubs, which has been eliminated because of the roll under effect created by the belt This is also the only tub style burnisher that allows the possibility of a flow-through compound system. Beyond this, the system has a unique unload system that is incredibly labor saving. A specially made sieving basket is emerged into the mass and removed with just the work pieces. No media has to ever be handled by the operator. It takes less than one minute to completely unload work pieces.

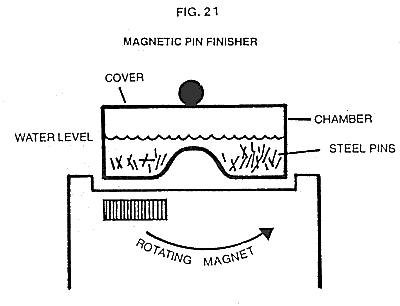

Magnetic Pin Finisher

The Magnetic Pin Finisher has been developed to burnish the nooks and crannies and far reaches of jewelry products. The machine uses a motor to spin a magnet beneath a flat table. The finishing chamber contains very fine steel needles or pins with the water and compound mix. The work pieces are placed in the chamber and covered. The cylindrical chamber is placed on top of the table. The magnets are rotated in a circular path that matches the bottom of the chamber. This causes the steel pins to stand up and rotate. The collision of the magnet driven pins with the work piece causes the mass to rotate at the same time as the pins hammer the surface of the work piece.

V. MACHINE EFFECTIVENESS / COST RELATIONSHIP

A. MACHINE COST EFFECTIVENESS

The main purpose of mass finishing is to economize the finishing operation of all jewelry products. Other reasons vary according to the situation. In Italy and the U.S., hand finishing labor is very costly. In China, the labor is cheap. The worker training and consistency are the issues . In some other countries, the main issue is the loss of gold from the raw casting to the finished product. The type of mass finishing is determined by these and other parameters:

B. COMMON FINISHING MYTHS

1. Many customers purchase plastic media based on lowest cost

Plastic media is made of two parts, a polyester resin bonding agent and abrasive grain. The most expensive part of the media is the resin bonding agent. In order to decrease the cost of selling plastic media, an increase percentage of abrasive can be mixed into the media. The problem is - the more grain, the faster the media wears, which actually makes it more expensive to operate. Another way to decrease the cost of selling plastic media is to use a less expensive bonding agent. Urea Formaldehyde has been used as a less expensive bonding agent, which again increases the wear rate and hence is more expensive to operate with this media.

2. Urea Formaldehyde bonded plastic media is cheaper to use and easier to settle out in your waste water system

Urea Formaldehyde or UF media was developed to fight the increased cost of using the standard polyester based resin bonding agents. Because it obviously wears out faster, some other benefit must have to be touted to over-ride this defect. Actually its initial cost is less. It does not make waste treatment any easier and it is more expensive to operate.

3. Ceramic cutting media costs less and wears longer

This is a true statement. We see this approach quite often in the Far East. The fact is that, because the media is harder and does not wear out, it does not cut the surface. If you are dealing with soft metals, as we often do for jewelry products, ceramic media for cutting is not practical because the surface of the media "loads up" with metal before it can wear to the next level of cutting. Therefore, the media only works in a manner of burnishing the surface.

4. High energy disc finishers give a better finish than Vibratory

The action of both a disc finisher and a vibratory finisher is basically the same with respect of the mass traveling in a three dimensional motion. Assuming the media and compound are the same, the only difference is t some added centrifugal force is being used in the operation. That alone cannot produce a better finish. Faster - yes, but not better. The simple fact that a particular grit media is rubbed over a work piece surface is what defines the degree of smoothness achieved. An example would be rubbing a 200 grit sand paper on a surface. No matter how hard or how t it was rubbed, it still remains a fact that you could not get better than 00 grit finish.

5. "After casting, put your piece in a pin machine and it is finished"

I heard this absurd statement from finished goods manufacturers coming out a seminar at a trade show. The statement may be true for the purpose of cleaning a raw casting; however, it actually deteriorates any broad surface t needs polishing. A pin machine is strictly for pronged and recessed as or the lowest quality bright finish. This is used to finish these hard to reach areas in conjunction with other mass finishing or hand finishing.

6. The European technique saves time

This technique is to use a plain media with no abrasive as a carrier and then to add abrasive grit for .ting. This is done in a batch operation as a slurry. Once the first cycle complete, it is then flushed. The batch is then run with a finer grit led and flushed again. This system saves an unloading operation; however, it sacrifices results. Finishing by this method would be as if one took a piece of paper and a sprinkle of sand and started to rub a piece as posed to using a piece of sandpaper. Although the unloading between finishing steps has been eliminated, the operation itself is very inefficient.

7. The machine does not work

Many times, after a manufacturer has purchased a machine and has embarked on mass finishing, they call and say "the machine does not work". My response is to ask several questions: a. Did you plug the machine in? b. Did you turn the machine on? c. Does the machine shake? or spin? If they answer yes to all of these questions, my response is "the machine works". The problem is that the technique the manufacturer is using is not producing what the manufacturer expected. He may have been misinformed, uninformed or misdirected. It is important to remember, although mass finishing is relatively straightforward once a process has been established, there are many variables to consider. The technology is the most important thing to consider when making a purchase. Just as in making a decision to purchase jewelry software, you should be dealing with a supplier who concentrates in the industry and is always updating their technology.

8. Internal separation in a vibratory machine saves time

Some vibratory finishing machines have a built in dam that, when closed, allows the mass to rise and pass over a screen which allows the media to return into the bowl and the work pieces shake across the screen and out of the bowl. The idea seems efficient; however, in reality, there is so much variation in jewelry components that it becomes a laborer's nightmare to change screens and find missing parts that never rise over the screen. internal separation is never 100% effective. It reduces the capacity of the machine and it causes longer down time for the unload cycle. An operator should be able to unload and reload a vibratory bowl up to 3 cubic feet in less than 10 minutes using an external separator.

VI CONSUMER EXPECTATIONS DICTATE TECHNIQUES

Ther is no best way to mass finish. The consumer who will eventually purchase the finished jewelry product is the one who actually dictates the finishing technique to be used by the manufacturer. For instance, let's manufacture a pair of gold earrings set with diamonds. The estimated retail value will be $2000 US dollars and it will be sold in an upscale jewelry store. The gold castings would probably be run in some type of mass finishing cutting cycle and then hand polished with several steps: the settings may be hand burnished and then the stones would be hand set and, finally, hand glossed again. Now let's use that same wax model and make a $ 100 US dollar pair of gold earrings with a cast in CZ that will be sold to Wal-Mart Stores. We would probably run that same gold casting through a three step mass finishing process that would give us a "near" polished finish. The final operation may be a quick hand gloss with a polishing wheel. Next, let's take the same wax model and make a pair of gold earrings to sell one of the world's latest consumers, a Mainland Chinese laborer. First, we will move the stone and now have a target retail of $40.00 US dollars. The manufacturer now may only have to do a simple burnishing operation to bring up the shine and color of the gold. Each one of the above consumer has a different level of expectation with regards to the product resulting in each product being processed by a different mass finishing technique. The end result is that each consumer is equally pleased with his or her purchase. The same scenario is true for costume jewelry. There is no best way. ere are many techniques developed for varying degrees of quality and economy Whether the product has been stamped, cast, machined or molded be it made from precious metal, base metal, plastic or wood, there are many machines and media available for mass finishing. The most effective to date remains the Vibratory Bowl Finisher.

NEW DEVELOPMENTS IN WASTE WATER TREATMENTS

New developments in treating effluent have progressed nicely from the set of jewelry mass finishing. In the early days, environmental restrictions were tremendous hurdles to overcome for many manufacturers. In most recent years, systems have been developed that make it a lot easier for manufacturers to efficiently process their vibratory me. The following are some methods currently used in many systems.

1. Polymer Flocculation
2. Filter Presses
3. Ultra Filtration
4. Resin Columns

Recycling Methods

The current technology now allows for the effluent to RECYCLE thru vibratory system. This eliminated the need to discharge water while saving in compound cost at the same time. In some parts of the world, the laws are not strict enough to make this necessary but we would hope that manufacturers will be environmentally responsible. Once the effluent has been treated, costume jewelry manufacturers now must deal with the disposal of sludge waste that has been extracted from the water. This sludge has typically been defined as hazardous waste and trucked away at about $200 per drum.

The latest development in WATER TREATMENT CHEMISTRY now encapsulates up to 99% of the soluble and insoluble metals from the effluent. The sludge, after air drying, now transforms into cement like material. In most cases, this allows the waste to be classified as non hazardous which allows dumping in land fills. For precious jewelry manufacturers, this simple 15 minute procedure allows them to recover the most gold or platinum ever attainable without waiting for days of natural settling or messy evaporation techniques.

By Steven Alviti – Copyright © Steven Alviti

Bel Air Finishing Supply Inc, 2004
